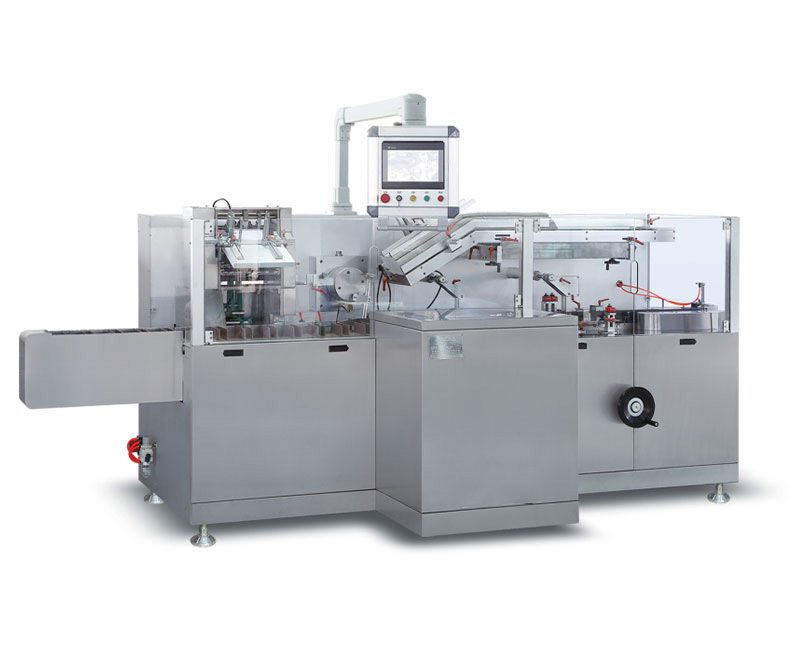

JDZ-180

Continuous Cartoning Machine

High Speed Cartoning Machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture. With high efficiency, high performance production capacity, leaflet folding and conveying, carton.

opening and forming, posterior pushing structure and related technology all reach Europe and USA standards; Simple design and posterior continuous pushing structure makes operation and maintenance more convenient;

three equal rotation opening carton and under twice pre-forming device to ensure that carton open and form completely.This model is automatic high speed continuous cartoning machine which is high performance product incorporates

pneumatic-photo-electro-mechanic.

Features

  • International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
  • Adopt human-machine operation system.
  • Automatically displaying device for trouble, speed and finished products counting.
  • Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
  • No products not suction leaflet, no leaflet not suction carton.
  • Automatic detection and rejection device for lacking blister goods and leaflets.
  • Protecting automatically for overloading.
  • Stable performance , easy operation.

Parameter

ItemTechnical parameters
Encasing speed180boxes/min
BoxQuality requirement250-350g/M²[Base on carton size]
Dimension range(L×W×H)(70-165)mm×(35-80)mm×(14-50)mm
LeafletQuality requirement60-70g/M²
Unfolded leaflet specification(L×W)(80-250)mm×(90-170)mm
Fold range(L×W)[1-4]Fold
Compressed airWorking pressure≥0.6mpa
Air consumption160-200L/min
Power supply380V 50HZ
Motor power4.5kw
Machine dimension(L×W×H)3650mm×1560mm×2040mm
Machine weight1750kg

Machine Details
